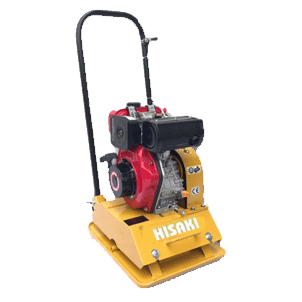

Hisaki/Depro YP80 Plate Compactor with 5HP Diesel Engine DP173

The torque generated by engine or electric motor is transferred to reciprocating motion by crank gear, which will pass it on vibrating foot (shoe) through spring cylinder
Wear-resistant compaction steel base provides long lasting durability and better compaction finish.
Durable rotor assembly and clutch pulley assembly saves maintenance cost.
Heavy duty rubber mountings and rubber absorbers made from natural rubber limits vibration towards handle to better protect engine and operator.
Strong steel belt cover to prevent dirt out of the belt and higher safety
Equipped with heavy duty clutch and strong exciter.

Technical Specifications

Type	Single cylinder, vertical, four stroke, direct injection, air-cooled
BorexStroke (mm)	73×59
Displacement (L)	0.247
Compression Ratio	20:01
Rated Power (KW/rpm)	3.8/3600
Rated Speed (rpm)	3600
Lowest rotation speed at zero load (r/min)	≤ 1300
Lubricating system	Pressure splashed
Starting system	Recoil Start / Electric starter
Fuel tank capacity (L)	2.5 L
Fuel consumption/related rotation speed (g/kW.h/r/min)	288.3/3600
Lube oil type:	CD grade or SAE 10W-30, 15W-40 0＃
Lube oil capacity (L)	0.75 L
