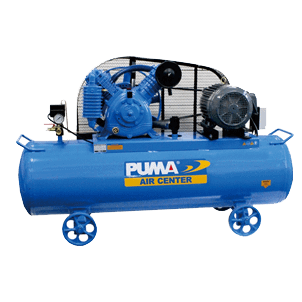

PUMA TK75-300 Air Compressor
Description
PUMA TK75-300 Air Compressor Description
- Special high-pressure design, safety, and sturdy structure for durability.
- The availability of the special auxiliary cylinder can further enhance compression efficiency.
- Suitable for use in factories, auto maintenance plants, tire shops, and special high-pressure supply systems.
Technical Specifications
|
HORSEPOWER (HP) |
7.5 HP |
|
POWER (KW) |
5.6 KW |
|
DISPLACEMENT (L/MIN/CFM) |
754 L/MIN / 26.3 CFM |
|
SPEED (R.P.M) |
1185 RPM |
|
NO. OF CYLINDER |
2 |
|
MAX PRESSURE (KG/CM²/PSI) |
16 KG/CM² / 228 PSI |
|
WORKING PRESSURE (KG/CM²/PSI) |
12 KG/CM² / 171 PSI |
|
TANK CAPACITY (L/GAL) |
304 L / 80 GAL |
|
N.W (KG/LBS.) |
332 KG / 730 LBS |
|
DIMENSION (CM) |
191 x 76 x 121 |
