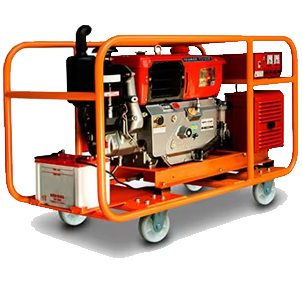

Get more power and portable with Yanmar YTG10S Series
A robust and durable diesel generator available in capacity range from 5kW to 12kW models (Single Phase /3 Phase). Delivering high power with lower fuel consumption for your equipment. It has Auto Voltage Regulator (AVR), brushless alternator and easy for maintenance. Reliable water-cooled diesel generators powered by Yanmar TF/TS series.
Alternator Specifications
|
Alternator Model |
S20FS-200/A |
|
Alternator Weight |
57 Kg |
|
Insulation Class |
H |
|
Operation Condition |
Ambient temperature not exceeding 5°C |

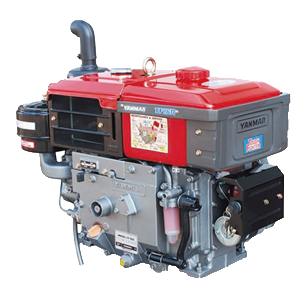

Engine Specifications
|
YANMAR |
TF160M |
|
Type |
Horizont al, 4-cycle, water- cooled diesel engine |
|
Bore x stroke |
102 x 105Â mm |
|
Displacement |
0.857 L |
|
Cont. output |
14 HP |
|
Rated output |
16 HP |
|
Revolutions |
2400 min-1Â (rpm) |
|
Starting system |
Hand Starting or electric starting (optional) |
|
Cooling system |
Radiator |
|
Lubricating system |
Fully sealed forced lubrication with trochold pump & hydrauliecg rulator valve |
|
Combustion system |
Direct injection |
|
Lub. Oil capacity liters |
3.0 L/h |
|
Fuel tank capacity |
14.3 L |
Generator Specifications
|
Capacity |
10 kVA |
|
Frequency |
50Hz / 60Hz |
|
Revolutions |
3000 for 50Hz /3600 for 60Hz |
|
No. of phase |
Single Phase (2 Wire) |
|
Power factor |
1 |
|
Excitation system |
Brushless, self-excitation system |
|
Drive system |
V-belt drive |
|
Voltage (Standard) |
220 V |
|
Recommend cable dia |
6-16 mm |
|
Recommend earth cable |
Equal to the conductor size |
|
Ampere |
45.5 A |
DimensionÂ
|
Dimension Length |
1287Â mm |
|
Dimension Width |
599 mm |
|
Dimension Height |
704 mm |
|
Net Weight (dry) |
307 Kg |
