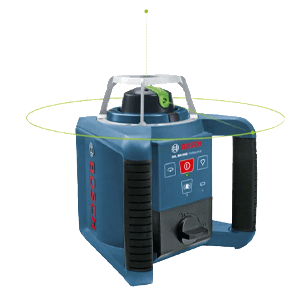

BOSCH GRL 300 HVG Rotation Laser
Description
BOSCH GRL 300 HVG has an outstanding visibility for indoor applications
- Green laser line: up to four times better visibility than a red line
- Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
- The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations
Technical Specifications
|
Laser diode |
635 nm, < 5 mW |
|
Operating temperature |
-10 – 50 °C |
|
Storage temperature |
-20 – 70 °C |
|
Laser class |
3R |
|
Working range |
up to 300 m (Diameter) |
|
Working range without receiver |
up to 60 m (Diameter) |
|
Accuracy |
± 3.0 mm at 30 m* (*plus use-dependent deviation) |
|
Self-levelling range |
± 5° (8%) |
|
Levelling time |
15 s |
|
Dust and splash protection |
IP 54 |
|
Rotation speed |
150, 300, 600 rpm |
|
Power supply |
2 x 1.5 V LR20 (D) |
|
Tripod thread |
5/8″ |
|
Weight, approx. |
1.8 kg |
|
Colour of laser line |
Red |
