YANMAR Fresh Water Pump YDP20N (Diesel)
Description
YANMAR YDP20N Description
YANMAR YDP Series provides industry-leading pumping capabilities for applications around the world. And as it is now EU Stage-V compliant and CE marked, the series meets the highest emissions standards globally. High quality components and a renowned Yanmar direct injection ensure optimal, low-cost performance backed by easy maintenance and a two-year warranty. And as the pumps are manufactured at a Yanmar facility in Europe your Yanmar support partner is there for swift back-up standards.
Features
A proven performer, now EU Stage-V compliant
- Having proved its credentials in some of the world’s harshest working environments the enhanced and durable YDP Series of diesel pumps is now EU Stage-V and CE certified, bringing their performance excellence into Europe.
Industry-leading features including electric starting
- The durable and dependable new 44-model YDP Series offers a range of features aimed at increasing productivity and run-time including an advanced Yanmar engine, much larger than standard fuel tanks and electric starting.
Operator friendly
- The low noise, low vibration YDP pumps are easier than ever to maintain and are compact and simple to transport due to their optional wheel kit – and all supported by an attractive two-year warranty.
Low fuel consumption and versatile power outputs
- The cutting-edge, direct injection, four-stroke Yanmar engine ensures low fuel consumption. Available in a range of power outputs to suit numerous applications and varying content from fresh water to liquid with significant amounts of debris.
High performance and high output
- Each model boasts a high output ranging from 500 up to 1.750 liters per minute coupled with low noise and vibrations.
Technical Specification
Starting System | Recoil |
Engine Fuel | Diesel |
Max. Capacity | 550 L/min |
Suction & Discharge Diameter | 50 mm |
Region of Use | Non- Regulated |
Engine Model | L48N6-PN12 |
Engine Type | 4 Stroke, Air Cooled Diesel Engine |
Displacement | 219 cc |
Max Output | 3.5 kW / 3600 rpm |
Continuous Output | 3.1 kW / 3600 rpm |
Fuel Oil Tank Capacity | 13 L |
Dimension (mm) | 530 x 484 x 637 |
Dry Weight Recoil | 44 Kg |
Dry Weight Electric | 59 Kg |
Suction Lift | 7 m |
Maximum Total Head | 32.0 m |
Additional information
Group |
Pump |
---|
Related products
KANDA Submersible Pump KBZ322
SKU:
MCPUKA0757
KIKAWA Domestic Pump KP825X
SKU:
MCPUKA0792

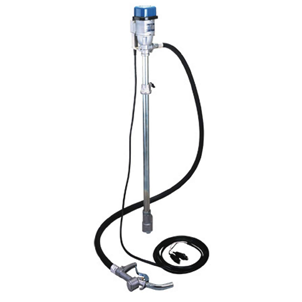

KOSHIN Drum Fill Pump FD12
SKU:
MCPUKA0761

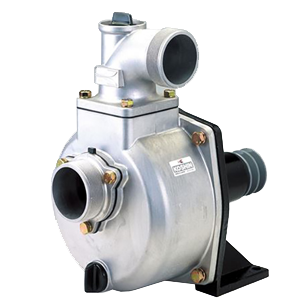

KOSHIN Pabool Pump SU-50V
